Tacho Meter / Stroboscope

모델

측정범위

정확도

비고

Decade Box

모델

모델명

측정범위

정확도

비고

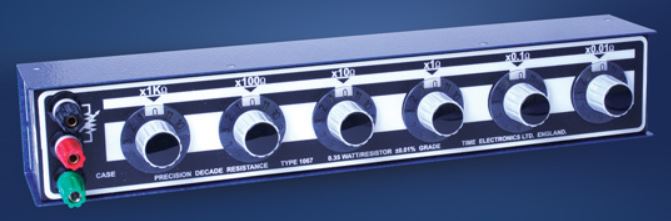

1067
사양서(PDF)

10mΩ-12㏀

0.01% nominal
10mΩ 분해능

RESISTANCE
PT100, RTD Simulation
6 Decade

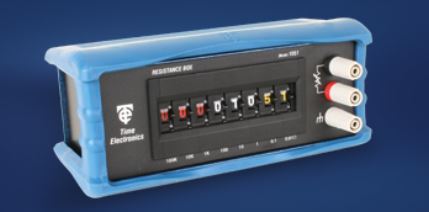

1051
사양서(PDF)

0.01Ω - 1㏁

0.1% - 10%
0.01Ω 분해능

RESISTANCE
8 Decades

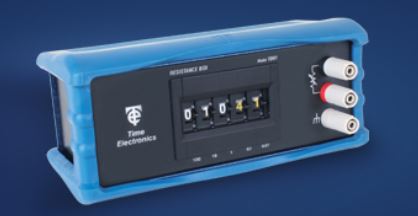

1041
사양서(PDF)

0.01Ω - 1㏀

0.1%
10mΩ 분해능

RESISTANCE
1Watt /Resistor
5 Decades

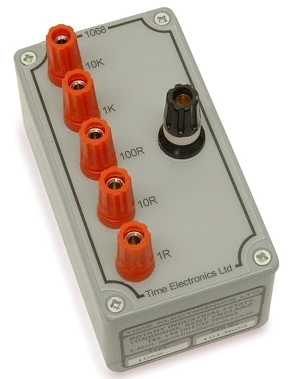

1068
사양서(PDF)

1, 10, 100Ω, 1㏀, 10 ㏀

1mΩ ~ 1Ω

RESISTANCE
5 Fixed 4mm Binding Post

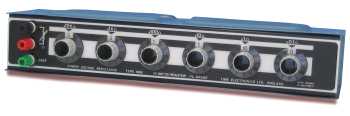

1065
사양서(PDF)

0.1Ω - 120 ㏀

1%
0.1Ω 분해능

RESISTANCE
High Power
10Watt/Resistor
6 Decades

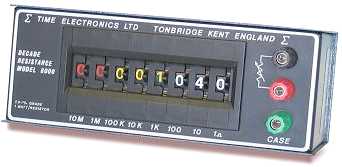

1040
사양서(PDF)

1Ω - 100 ㏁

0.1% - 1%
1 Ω 분해능

RESISTANCE
8 Decades

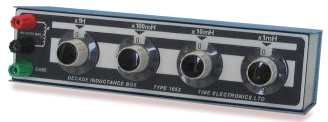

1053
사양서(PDF)

1 mH - 10 H

3%

INDUCTANCE
4 Decades

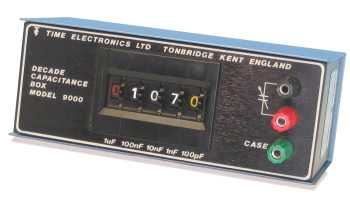

1070
사양서(PDF)

100 pF - 10 ㎌

1%

CAPACITANCE
5 Decades

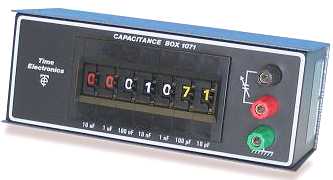

1071
사양서(PDF)

10 pF - 100 ㎌

1%

CAPACITANCE
7 Decades

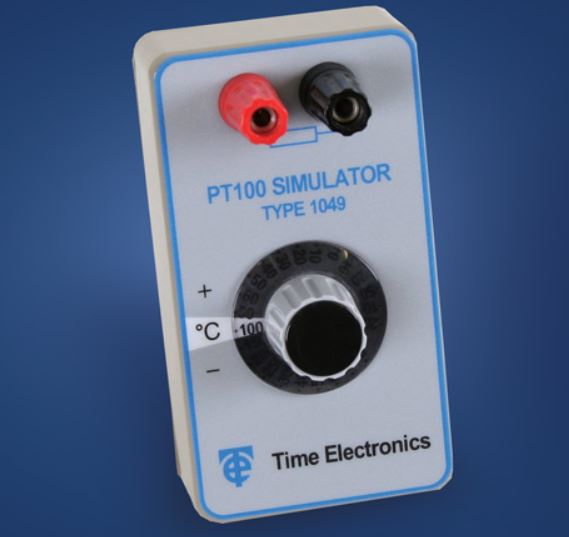

1049
사양서(PDF)

-200 ~ +800 degC

0.3degC

RTD
23 step PT100 Simulator

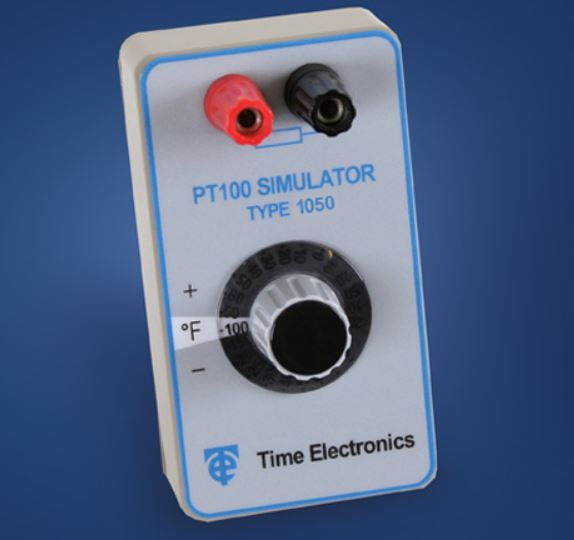

1050
사양서(PDF)

-100 ~ +1000 degF

0.5 degF

RTD
23 step PT100 Simulator

Precision Electronic Test Equipment

모델

측정범위

비고

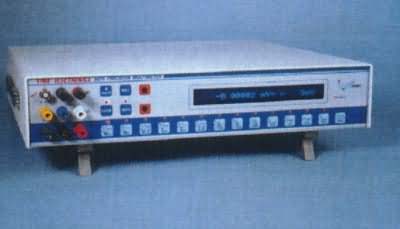

5075
사양서(PDF)

3mV -10kVDC, 3㎂-30ADC,
 30mΩ-1GΩ, 1Hz-100kHz,
30mV-3kVAC, 3㎂-30AAC
0-300㎌, Pt100

7 ½Digits
Precision Digital Multimeter
IEEE-488 Interface

5025
사양서(PDF)

0-1kV AC/DC Voltage
0-20A AC/DC Current
10Ω-1 GΩ Resistance
10MHz digital frequency/period
Thermocouple simulation

Programmable Multifunction Signal Generator
GPIB Interface
22 bit (0.25ppm) Resolution
15 ppm Accuracy

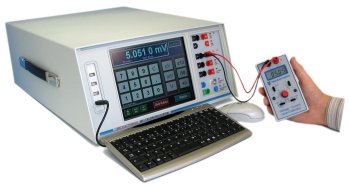

5051
사양서(PDF)
Demo Program (3MB)

0-1kV AC/DC Voltage
0-20A AC/DC Current
10Ω-1 GΩ Resistance
10MHz digital frequency/period
Thermocouple simulation

Calibration Station
22 bit (0.25ppm) Resolution

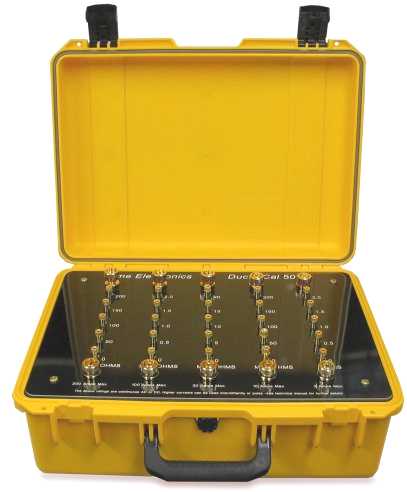

5070
사양서(PDF)

0.2, 2, 20, 200, 2000 milli-ohm

Ductor Tester, Milli-Ohm meter Calibrator
(3 ~ 200A current rated)

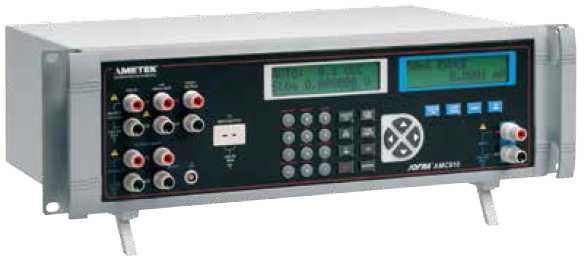

AMC910
사양서(PDF)

100.000mV - 100.000V 출력
0-100.000mA 출력
0-4000.0Ω 입력
5-4000.0Ω출력
J,K,T,E,R,S,N,B,C,L,BP, XK,U, mV 입,출력

Pt385 (100,200,500,1000)
Pt392, Pt3916(JIS), Ni120, Cu10, YSI400, 25 ohm SPRT

APM Series Pressure Module
(0-700 Bar)

Lab Standard Voltage
Current T/C, RTD, Ohm Source and reading

Advance Test Products for Power System

모델

모델명

측정범위

비고

High Voltage / Ground Tester / Ductor Calibrator

모델

모델명

측정범위

비고

E1610

20 ~ 2000 Ω

Earth / Ground Tester　

E3511

5,000 VDC, 100 GΩ

High Voltage Insulation Tester

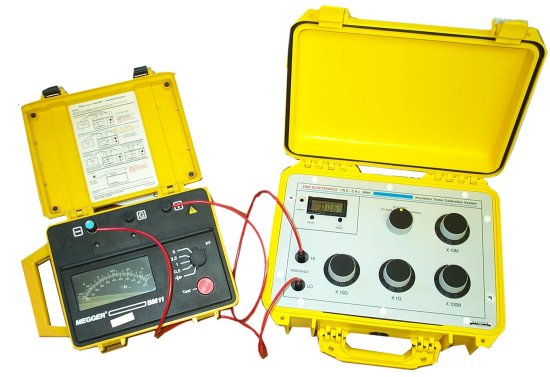

5069
사양서(PDF)

100 KΩ ~ 100 GΩ
0-10kV (open Circuit)
0-20mA (Short Circuit)

Insulation Tester up to 10kV
Calibration System

5070
사양서(PDF)

0.2, 2, 20, 200, 2000 milli-ohm

Ductor Tester, Milli-Ohm meter Calibrator

Oscilloscope , Counter & Timer Calibrator

모델

모델명

측정범위

비고

5041
사양서(PDF)
Demo Program (2MB)

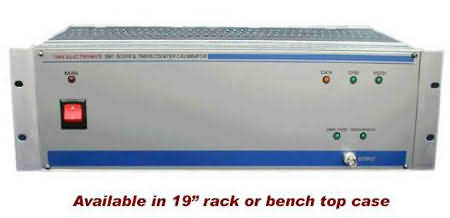

Oscilloscope : 600MHz
Counter, Timer : 1GHz

Programmable AC Power Monitor & Display

모델

모델명

측정범위

정확도

비고

Programmable Power Supply

모델

모델명

전압출력 범위

전류출력범위

비고

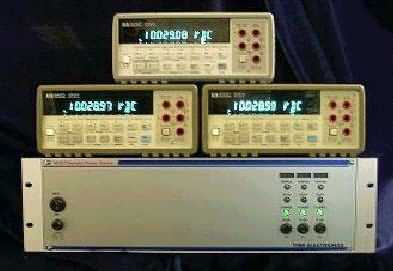

5033

0 ~ 22 VDC

2A

3 Ch, 40W each

측정범위

접촉   : 20,000 RPM
비접촉: 99,999 RPM

공업 단위

RPS, RPM, RPH
Yard,Feet,Inch, Cm,meter, Mile

정확도

0.035% Reading

화면

8 Character, LCD

측정 가능 거리

2.5 ~ 65 cm

악세사리

1. Contact Adapter
2. Surface Speed Wheel
3. Convex Tip
4. Concave Tip
5. Reflect Tape
6. Carrying Case
7. Instructions

측정범위

20 ~ 29,999 FPM

공업 단위

Flash per Minute

정확도

0.01% ± 1 LSD

Strobo

제논램프, 70-100ｕS

화면

5 digit, LCD

전원

220V AC

악세사리

1. Flash Tube
2. Instruction

저항 범위

10mΩ - 10㏀

Decade No.

6 Decades

분해능

10 mΩ

Accuracy

At calibration temperature of 22 degC.
+/- 0.01% of setting +/- 2 milliohms, after deduction of residual resistance +/-1mR for residual variation.

Temp. coefficient

>10 ppm/decC,  >20 ppm/degC (<1 옴)

Insulation

2kV/50Hz (case-terminal)

최대 전압

200V (Max. Resistance Setting)

Contact

Silver Alloy

안정도

Better than 20ppm/Year (>1옴),  Better than 100ppm/Year

중량

1.1 kg, 87mm x 63mm x 355mm

정확도 (Residual end Resistance)

Decade

Accuracy

Max. Current

10 mR

5%

3000 mA

100 mR

0.5%

2000 mA

1R

0.1%

600 mA

10 R

0.05%

200 mA

100 R

0.01%

60 mA

1 K

0.01%

20 mA

저항 범위

1Ω. 10Ω, 100Ω, 1KΩ, 10㏀

Accuracy

1R ± 1mR
10R ± 5mR
100R ± 10mR
1K ± 100mR
10K ± 1R

최대 전압

250Vdc

중량

 290g,  86mm x 65mm x 115mm (HWL)

저항 범위

0.01Ω - 1 ㏀ (10 mΩ Step)

Zero Residual Resistance

60 mΩ Max.

  Temp. Coefficient

100 PPM / degC

Power Rating

1W / Resistor

Max. Working Voltage

100Vdc , 70Vac (RMS)

Max. current

1 Amp.DC,   0.7Amp. AC(RMS)

Dimension

110 x 75 x 200 mm, 0.6Kg

Accuracy

  0.01Ω : ±10%
    0.1Ω : ±5%
      1 Ω : ±1%
    10 Ω : ±0.5%
   100Ω : ±0.1%

저항 범위

0.1Ω - 120 ㏀ (0.1Ω Step)

Residual Resistance

20 mΩ Max.

  Accuracy

0.1Ω - ±5%
1 ~ 120㏀ - ±1%

Power Rating

10W / Resistor

Max. Working Voltage

500Vac /dc

Temp. coefficient

100ppm/degC
0.01R,0.1R - 65ppm/degC

Dimension

390 x 60 x 150 mm, 2Kg

저항 범위

0.01Ω - 1 ㏁ (0.01Ω Step)

Zero Residual Resistance

Less than 90 mΩ Max.

  Temp. Coefficient

100 PPM / degC

Power Rating

1W / Resistor

Max. Voltage

250Vdc

Dimension

110 x 75 x 200 mm, 0.6Kg

Accuracy

0.01Ω : 10%, 1A
0.1Ω : 5%, 1A
1 Ω : 1%, 1A
10 Ω : 0.5%, 0.3A
100Ω : 0.1%, 0.1A
1㏀ : 0.1%, 33mA
10㏀ : 0.1%, 10mA
100㏀: 0.1%, 3mA

저항 범위 :

1Ω - 1 ㏁ (1Ω Step)

Zero Residual Resistance :

250 mΩ Max.

  Temp. Coefficient :

50 PPM / degC

Power Rating :

1W / Resistor, 300Vmax, Metal Film Resistor

Dimension :

110 x 75 x 200 mm, 0.6Kg

Accuracy :

1Ω : ±1%
10Ω : ±0.5%
100Ω :  ±0.05%
1㏀ : ±0.05%
10 ㏀ : ±0.05%
100 ㏀ :±0.05%
1 ㏁ : ±0.1%
10 ㏁ : ±1%

인덕턴스 범위

1mH - 10H

Accuracy @1kHz

±3% of setting

End Resistance

<0.2Ω

  End Inductance

<1uH

Max. Current per decade

30mA-1mH,
70mA-10mH,
100mA-100mH,
150mA-1H

Resistance per decade

0.5 ohm (1mH),  2 ohm (10mH)
14 ohm( 100mH),  75 ohm (1H)

Max. Voltage

30V AC rms (non switching)
(subject to max current rating)

Typical Q factor per decade @ 1kHz

75-1mH,
175-10mH,
280-100mH,
250-1H

Dimension

245 x 62 x 100 mm (LWH), 0.8Kg

범위

100pF - 10㎌

Accuracy @1kHz

±1%,    ( 9x100pF range : ±1%±5pF)

Residual Capacitance

 Approx . 40pF

  Power factor

0.0015 - 0.01 (@1kHz)

  Insulation Resistance

30 GΩ - 50 GΩ

Max. Voltage

72-200Vac (50Hz, RMS), 100Vdc-300Vdc

Operating Temp.

-10 - 50 degC

Dimension

110 x 75 x 200 mm, 0.6Kg

범위

10pF - 100㎌

Accuracy @1kHz

±1%,    ( 9x100pF range : 1%±7pF ;
              9x10㎌ range : 5%)

Residual Capacitance

 Approx . 55pF

  Power factor

0.0025 - 0.01 (@1kHz)

  Insulation Resistance

30 GΩ - 50 GΩ

Max. Voltage

50-200Vac (50Hz, RMS), 63Vdc-300Vdc

Operating Temp.

-10 - 50 degC

Dimension

110 x 75 x 200 mm, 0.6Kg

온도 범위

-200, -100, -50, -20, -10, 0, 10, 20, 30, 40, 50, 60, 80, 100, 150, 200, 250, 300, 400, 500, 600, 700, 800도씨

Accuracy

- 200 to -60 degC ± 0.3 degC
-60 to +60 degC ± 0.15 degC
+60 to +200 degC ± 0.3 degC
200 to 500 degC +/- 0.5 degC
500 to 800 degC +/- 0.65 degC

최대 전류

50mA

Temp. Coefficient

Less than 30ppm per ℃

중량

 170g,  61mm x 112mm x 55mm

온도 범위 (℉)

-100, -50, -25, 0, 32.2, 50, 75, 100, 125, 150, 175, 200, 225, 250, 300, 350, 400, 450, 500, 600, 700, 800,1000

Accuracy

-100 to 300 °F +/- 0.5 °F
300 to 1000 °F +/- 0.9 °F

최대 전류

50mA

Temp. Coefficient

Less than 20ppm per °F

중량

 170g,  61mm x 112mm x 55mm

DC전압

14 Ranges : 3mV-10kV (1,3,10,30)    최대분해능: 10nV
정확도:±12ppm+6digits (90일)     ±18ppm+6digits (1년)

DC 전류

15 Ranges : 3㎂ - 30A   최대분해능 : 10㎀
정확도:±75ppm+10digits          ±100ppm+10digits

  저항

19 Ranges : 10 mΩ - 1GΩ   최대분해능 : 10 nΩ
정확도:±20ppm+6digits          ±30ppm+8digits

주파수

Range : 1 Hz - 100kHz   최대분해능 : 1Hz
정확도:±10ppm+1digit          ±12ppm+1digit

AC 전압

6 Ranges : 3mV - 3kV   최대분해능 : 100 nV
정확도:±0.05% +40digits          ±0.06% +40digits

AC 전류

8 Ranges : 3㎂ - 30 Amps   최대분해능 : 10 pA
정확도:±0.1% +80digits          ±0.2% +100digits

Capacitance

5 Ranges : 0 - 300㎌   최대분해능 : 1pF
정확도:±0.2% +20digits          ±0.25% +20digits

PT 100

Range : -200 ~ +600 ℃   최대분해능 : 0.001℃
정확도:±0.05℃          ±0.06℃

Resolution

4½, 5½, 6½, 7½ digits

Reading Rate

150,250,500ms, 1,2,4,8,16,32sec

Features

Self Test Mode     Diode / Zener Test     Max/Min Function
Continuity Test     AC/DC Coupled Facility
Countdown & Sample Beep on Long filter periods
Oxygen Fress Copper Input Terminals

General Information

전원: 110/220/240V AC 50/60Hz     IEEE I/F : IEEE-488
Operating Temp. : 0-50degC    Dimension : 423x89x393 (WHD), 8.5 Kg

Option

1. AC Module   2. 19" Rack Mount Kit   3. Low thermal 10 CH Scanner
4. Traceable Calibration Certificate

DC전압

0 to ± 1050V
± 15ppm of setting (Best 1 Year Specification)

DC 전류

0 to ± 22A
± 80ppm of setting(Best 1 Year Specification)

  저항

0 to 1G ohms (Fixed Values, decade steps)
± 20ppm of setting (Best 1 Year Specification)

AC 전압
(Sinewave)

1mV to 1050V (10Hz to 20kHz, Sine-wave)
± 300ppm of setting(Best 1 Year Specification)

AC 전류
(20Hz-1kHz Sine Wave)

10uA to 22A (20Hz to 1kHz, Sine-wave)
± 0.05% of setting (Best 1 Year Specification)

Conductance (2&4 wire)

1 S to 1n S (Fixed Values, decade steps)
± 20ppm of setting (Best 1 Year Specification)

Thermocouple simulation

-270 to 1800°C (Type J,K,R,T,S,B,E,N)
± 0.3 °C (Best 1 Year Specification)

100MHz digital frequency / period

0.1Hz to 10MHz / 100nS to 10S
± 20ppm of setting (Best 1 Year Specification)

Features

Self Diagnostic Mode
Offset / Deviation Mode
Safe High Voltage Protection
Self Recalibration Mode
Easycal Calibration s/w compatibility

General Information

전원: 100~230V AC 50/60Hz
I/F : GPIB(IEEE488), RS232, USB,
Dimension : 430x155x480 (WHD)
16.5 Kg

DC전압

0 to ± 1050V
± 15ppm of setting (Best 1 Year Specification)

DC 전류

0 to ± 22A
± 80ppm of setting(Best 1 Year Specification)

  저항

0 to 1G ohms (Fixed Values, decade steps)
± 20ppm of setting (Best 1 Year Specification)

AC 전압
(Sinewave)

1mV to 1050V (10Hz to 20kHz, Sine-wave)
± 300ppm of setting(Best 1 Year Specification)

AC 전류
(20Hz-1kHz Sine Wave)

10uA to 22A (20Hz to 1kHz, Sine-wave)
± 0.05% of setting (Best 1 Year Specification)

Conductance (2&4 wire)

1 S to 1n S (Fixed Values, decade steps)
± 20ppm of setting (Best 1 Year Specification)

Thermocouple simulation

-270 to 1800°C (Type J,K,R,T,S,B,E,N)
± 0.3 °C (Best 1 Year Specification)

100MHz digital frequency / period

0.1Hz to 10MHz / 100nS to 10S
± 20ppm of setting (Best 1 Year Specification)

Features

Self Diagnostic Mode
Offset / Deviation Mode
Safe High Voltage Protection
Self Recalibration Mode
Easycal Calibration s/w compatibility

General Information

전원: 100~230V AC 50/60Hz
I/F : GPIB(IEEE488), RS232, USB,
Dimension : 430x155x480 (WHD)  16.5 Kg

Ohm Range

Current

Accuracy

50, 100, 150, 200 micro-ohm

200A

0.2%

0.5, 1, 1.5, 2 milli-ohms

100A

0.2%

5, 10, 15, 20 milli-ohms

30A

0.1%

50, 100, 150, 200 milli-ohms

10A

0.05%

0.5, 1, 1.5, 2 ohms

3A

0.05%

DC전압출력

0-100.000mV (분해능: 1㎶)
0-1.00000V (분해능: 10㎶)
0-10.0000V (분해능: 100㎶)
0-100.000V (분해능: 1mV)
정확도:±25ppm+2mV (90day, 100V range)

DC 전류출력

0-100.000mA (분해능: 1㎂)
정확도:±85ppm+2㎂ (90day, 100mA range)

  저항 입력

0-400.00Ω (분해능 :0.001Ω)
401-4000.0Ω (분해능:0.01Ω)
정확도:±35ppm±0.003Ω (90day, 400Ω range)

저항 출력

5-400.00Ω (분해능 :0.01Ω)
5-4000.0Ω (분해능:0.1Ω)
정확도:±0.03Ω (90day, 5~400 Ω range)

T/C 입,출력

J,K,T,E,R,S,N,B,C,L,U,BP,XK, mV
(분해능: 출력 - 0.1℃, 입력 - 0.01℃)
정확도:0.1℃ (90day, "J" Type, -210 degC range)

RTD 입력

Pt385 (10,50,100,200,500,1000)
Pt392, Pt3916(JIS), Ni120, Cu10, Cu50, Cu100, YSI400
25 ohm SPRT
(분해능 : 0.001℃ - Pt385-100)
정확도:±0.05℃ (90day, Pt100-385 630-800 degC range)

RTD 출력

Pt385 (10,50,100,200,500,1000)
Pt392, Pt3916(JIS), Ni120, Cu10,Cu50, Cu100, YSI400
(분해능 : 0.01℃ - Pt385-100)
정확도:±0.08℃ (90day, Pt100-385 630-800 degC range)

Pressure

Jofra APM series pressure modules

Features

Internal Self Resetting Fuse

General Information

전원: 90~132/197~264Vac Selectable, 47~63Hz
I/F : RS232, GPIB (IEEE-488-2 option)
Display : 16x2 Large Character   Alphanumeric with LED backlight
Dimension : 1300 x 120 x 220 (WHD)   2.3 Kg

일반

640x480 color graphical display
Hard Drive: minimum 8GB
Std I/O Ports: ethernet, serial, parallel
Optiol I/O Ports: keyboard, mouse and external monitor, IRIG-B

Waveform Recorder

10 channels (6 analog, 4 digital)
Sample Rate: 7680 samples per second
Record length: up to 10 seconds

 챠트 레코더

16 channels (12 analog, 4 digital)
Sample Rate: 10 readings/second
Record length: up to 2 weeks continuous

측정

Voltage measurement
3-phase 4-wire input
Measurements: RMS, average, peak, or DC
Ranges: 0-600V RMS/DC
Accuracy: 0.1% of reading (RMS)
Current measurement
3 galvanically isolated channels
Measurements: RMS, average, peak
High range: 0-50A AC continuous, 0-100A AC for 15 seconds
Low Range: 0-2A AC
Accuracy: 0.1% of reading (RMS)
Time measurement
Ranges: 0 to 999,999 sec, 0 to 999,999 cycles
Accuracy: 0.2 ms
Phase measurement
Ranges: 0.0 to 360.0 degrees or +/-180.0 degrees
Resolution: 0.01 degree
Accuracy: +/-0.2 degrees
Frequency measurement
Range: 1 - 3000 Hz
Accuracy: 0.005 Hz at 60Hz
Resolution: 0.001 Hz at 60Hz
Other Measurement Functions
Single and 3-phase power (kVA, kVAR, kWatt and P.F.)
Symmetrical components Harmonics
Graphical phasor display
Graphical impedance display

Event Trigger

4 galvanically isolated inputs
Range: 12-300V AC/DC or contact sensing
Input impedance: 60kohm minimum

크기 및 무게

Rugged portable case
Dimensions: 12.4"W x 7.3"H x 12.3"D (31.5cm W x 19cm H x 31.2cm D)
Weight: 20 lbs (9.3kg) s

전원 사양

AC: 90-264 VAC, 47-63 Hz
Power consumption: 60W
Battery: built-in
Battery life: >2 hours

Option

Option 01: Cordura carry case - Padded case with shoulder strap and pockets for leads and manuals
Option 02: Hard-shell shipping case
Option 10: Peripheral interface package (for external video monitor, mouse and keyboard)
Option 11: DC power input with a car adapter
Option 20: Fused voltage test leads
Option 21: Current test leads
Option 22: Set of three clamp-on current probes
Option 30: Additional manual
Option 31: 1 Year extended warranty. Additional year for a total of 2 years

측정범위

20 Ω  : 0.01Ω 스텝
200 Ω : 0.1 Ω 스텝
2000 Ω: 1 Ω 스텝

정확도

2% Reading±2 Digit
Total Service Error :
±5% Reading ±1 Digit

측정전류

10mA AC RMS  (20Ω범위)
1mA AC RMS (200Ω범위)
0.1mA AC RMS (2000Ω범위)

측정시 주파수

128 Hz

외란

5Vrms 50/60Hz 전압에 의한 외란시 ±0.5% Reading 이하 영향

최대 전류치
저항치

2㏀ (20Ω 범위)
5㏀ (200Ω 범위)
50 ㏀ (2000Ω 범위)

최대 잠재 저항치

2.2㏀ (20Ω 범위)
22㏀ (200Ω 범위)
52 ㏀ (2000Ω 범위)

최대 출력 전압

30V rms

응답 시간

3초

Flash Test

3kV

내 전압

240V AC ( 양 터미널 사이 전압)

주변 온도 영향

±0.05% / ℃

Safety

IEC1010, BS4743, IEC348  Safety Class 111

진동

IEC 68-2-2 (BS2011, Part 2Fc)

충격

IEC 68-2-2 (BS2011, Part 2)

주변 온도

0 ~ 40℃

 악세사리

1. Carrying Caser
2. Instruction Manual

-- Option Accessory --
1. Field Accessory Kit

절연 저항 범위

100 KΩ ~ 100 GΩ
정확도 : ±1.5%

전압 범위

1,000 VAC 또는 DC
정확도 : ±1.5%

측정 전압

500 V, 1kV, 2.5kV, 5kV DC
정확도 : ±5% (10 MΩ)

Break Point 전류

0.5 mA

Short Circuit 전류

1.2 mA

Ripple 전압치

<10V P-P,  R< 10MΩ

 충전 시간

15초 ( 2mF Capacitor를 5kV까지 충전시간)

 방전 시간

2초 (2mF Capacitor를 5kV 에서 50V로)

 Hum Rejection

2 mA RMS (5kV 범위)

 측정시 최대 전압

1 kV ( H와 L,  H와 Guard 양단)

 내부 배터리

12V 1.25AH, NiCd pack, 8시간 사용

 Flash Test

9kV AC (1 분간)

Safety

IEC1010

진동

IEC 68-2-6

충격

IEC 68-2-6

주변 온도

-15 ~ 55℃

크기 및 무게

330 x 263 x 144 (LWH), 3.5 kg

외함 재질

Yellow ABS, Black Polycarbonate

 악세사리

1. Test Leads
2. Instruction Manual

저 항 ( Ohm)

9x10G, 9x1G, 9x100M, 9x10M plus 5M, 2M, 1M, 500K, 200K, or 100K

저항 정확도

100K - 5M, 1%, 10M to 10G, 1%. 10G to 100G, 5%

  Resistance Temp. Coefficient

Less than 250ppm per degC

Open Circuit Volt
측정

0 to 2kV range, 0 to 10kV range, both ranges 1% of f/s accuracy

Volatage Display

1.999kV full scale, and 10.00kV full scale

Short Ciruit Current
측정

0 to 2mA range, 0 to 20mA range, both ranges 1% of f/s accuracy

Current Display

1.999mA full scale, and 19.99mA full scale

전 원

Internal battery, 6V re-chargeable NiCad, >500hrs between charges

Accessory

Safety connection plugs/leads with bare ends to allow custom fitted connectors
Mains battery re-charger (230V 50Hz)

Dimension

380mm x 254mm x 132mm  2.8Kg

Ohm Range

Current

Accuracy

50, 100, 150, 200 micro-ohm

200A

0.2%

0.5, 1, 1.5, 2 milli-ohms

100A

0.2%

5, 10, 15, 20 milli-ohms

30A

0.1%

50, 100, 150, 200 milli-ohms

10A

0.05%

0.5, 1, 1.5, 2 ohms

3A

0.05%

Amplitude

2mV/Div, 5mV/Div, 10mV/Div, 20mV/Div, 50mV/Div, 100mV/Div, 200mV/Div, 500mV/Div, 1V/Div, 2V/Div,5V/Div, 10V/Div, 20V/Div, 50V/Div (all at graticule heights of 2, 4, 6, or 8)

Frequency

0.2Hz to 200kHz (settable in steps equivalent to 1us intervals), 500kHz, 1MHz, 2MHz, 2.5MHz, 4MHz, 5MHz,10MHz, 20MHz, 25MHz, 50MHz, 100MHz

  Period

10ns, 20ns, 40ns, 50ns, 100ns, 200ns, 250ns, 400ns, 500ns, 1us, 2us,4uS to 8s (settable in 1us steps)

Mark, Space Ratio

0.001% to 99.999%. Resolution: 10% (20 to 99us), 1% (100 to 999us), 0.1% (1 to 9.999ms),0.01% (10 to 99.999ms), 0.001% (100ms to 8s)

Rise Time

Less than 1ns. Allows bandwidth checking up to 600 MHz

Programmable

Interfaces: RS232 (serial) and GPIB (IEEE488)
Commands: A full command-set allows complete control of all functions by an external computer

Soft Ware

An easy-to-use Windows based application allows full control of the calibrator from an external PC without any programming. The5041 is also fully compatible with "EasyCal" software which has an inbuilt driver to allow speedy auto-cal calibration rens.

입력 범위

400 AC (230Y400) , 5A
400Vac L-L 3P3W
230Vac L-N 3P34W
208AC (120Y208), 5A
208Vac L-L 3P3W
120Vac L-N 3P4W
480AC^*(277Y480), 5A
480Vac L-L 3P3W
277Vac L-N 3P4W
110AC^*(63Y110), 5A
110Vac L-L 3P3W
63Vac L-N 3P4W
Programmable
전면 키패드를 이용하여 해당 CT와 Primary PT에 맞도록 프로그램.
* : 110 보조전원만 가능

최대 CT Primary

6,500 Amps

최대 PT Primary

60,000Vplts

보조 전원

110VAC (45-65Hz)±15%
230VAC (45-65Hz)±15%

화면

LCD, 3열 12mm, 4mm높이, Backlit 기능
자동 소수점기능, 자동 공업단위기능

통신 기능

Modbus (RS485, RS422) ;
Modbus RTU with 16-bit CRC, 4800, 9600, 19200 Baud Rate, 1-247 Address, 5ms Command Rate

주변 온도

-10 ~ 65도씨, < 75% 상대습도

적용 예

PPM장비는 전원관리, 제어 및 보호; 스위치기어 메터링, 전원부하 모니터링, 에너지 및 코스트 메니지먼트, 프로세스, 빌딩, 빌딩 및 쇼핑센터, 전화교환기, 각종 서버관리등의 전원관리등에 적용
Process Automation :
각종 DCS장비류, 계장장비류의 전원소모량등의 감시 및 각종 해당 파라메터의 정확한 집계가능
Preventive Maintenance :
전력요구사항의 변화는 때때로 각종 계장장비류의 이상으로 야기되는수가 많으므로 사전에 이를 탐지, 및 수리 교환등의 작업이 가능
Meter distribution feeders, transformers, motors, genetors, switchgears, 및 catacitor bank
빌딩 전원계산 및 관리 :
PPM장비는 에너지관리, 경비계산, 등등의 관리적인측면에서도 정확한 계산치를 제공하여 각종 전원의 분배관리, 경비절감등의 예상등이 가능

Channels

3 Channel Power Source

Rating

0-20V DC
2A
40 watts per channel
4 wire output

  Stability

<5ppm/24 hours,
<10ppm/month),
<20ppm/year at full load

Resolution

22-bit settable resolution
Automatic power setting resolution

Noise

<1ppm

Temperature Coefficient

<1ppm/°C

Current Readback

18 bit

Programmable

Interfaces: GPIB (IEEE488)
Commands: Easy to use SCPI-compatible command language

General

Rack-mount
Front-panel LEDs show status of each channel
