LEVEL MEASUREMENT
Genesis™ Models ED1 & ED2 Multiphase Detectors
Genesis™ 모델 ED1 및 ED2는 TDR(Time Domain Reflectometry) 기술을 기반으로 하는 24V DC 전원용 레벨 검출기로, 계면(interface) 레벨 측정 시 다양한 층을 정밀하게 측정하도록 설계되었습니다. 다수의 획기적인 기술적 성과를 집약한 이 최첨단 레벨 검출기는 기존의 여러 측정 기술을 훨씬 능가하는 뛰어난 측정 성능을 제공합니다.
- Vapor phase (based on tank dimensions)
- Total level (e.g., hydrocarbon liquid)
- Top of emulsion layer
- Bottom of emulsion layer (e.g., water level)
- Sediment
Pulsar® Model R80 FMCW 80 GHz Radar level transmitter
- Multivariable two-wire, 24 VDC loop-powered transmitter for level, volume, or flow
- Performance is not process dependent (changing specific gravity and dielectric constant have no effect)

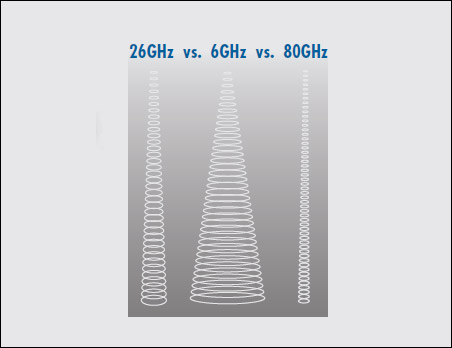

- 80 GHz operating frequency offers superior performance, smaller antennas, better accuracy and enhanced resolution
- Antenna designs up to 200°C (+400 °F), -1 to 70 bar (-14.5 to 1000 psi)
- Hygienic antenna with Tri-Clamp connections and 15 Ra surface finish
- Range up to 60 meters (200 feet)
- 4-button keypad and graphic LCD allow for convenience viewing of configuration parameters and echo curve
- Proactive diagnostics advise not only what is wrong but also offer troubleshooting tips

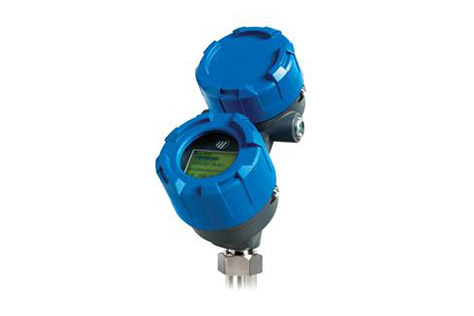

Eclipse® 706 guided wave radar transmitter

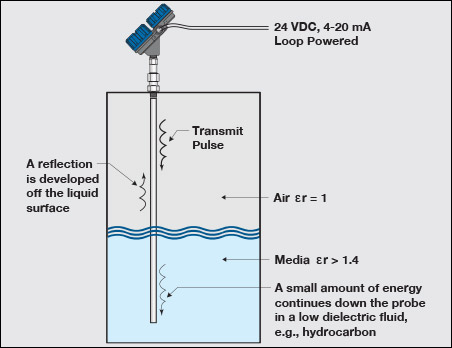

- Low dielectric measurement capability (εr ≥ 1.4)
- Volumetric and flow output
- Quick connect/disconnect probe coupling
- Operates in visible vapors and ignores most foams
- IS, XP, and Non-Incendive approvals
- Ignores coating buildup
Options - Foundation fieldbus™, PROFIBUS PA , Modbus
- Display/keypad
- Local remote mounting
- Interface measurement
E4 Modulevel® liquid level transmitter
- Safety Integrity Level (SIL) 2 Certified
- No calibration required; configuration only
- Available with 4–20 mA and HART® 7 with PACTware™ PC software and the Field Device Tool (FDT); AMS ready
- NAMUR NE 107 diagnostic coverage

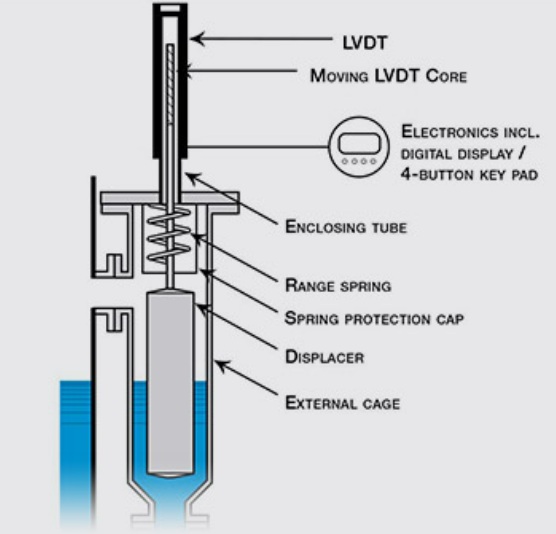

- Range spring suppresses effects of turbulence to produce stable output signal
- Full range of hazardous location approvals with international certifications
- Order entire Modulevel or retrofit the latest transmitter onto existing displacer assemblies
- In additional to total level, suitable for interface measurement or specific gravity output
