Connection System

모델명

비 고

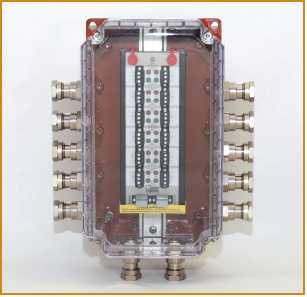

TG200

일반지역 또는 Non-Incendive (iC) 지역용
Auto-Terminator & Spur short protection (Spur Short 시 4mA 소요)
 4 spur ,  8 spur, 10 spur, 12 spur

9410/34

Zone 2 지역용 (iC)
 4 spur ,  8 spur, 12 spur

FB-JBXX

Documentation (Drawing, approval ~ as built)
Assembly (hole only, cable gland, hub etc) and Wiring
Function Test : 475 FF communicator, power test, short circuit test etc

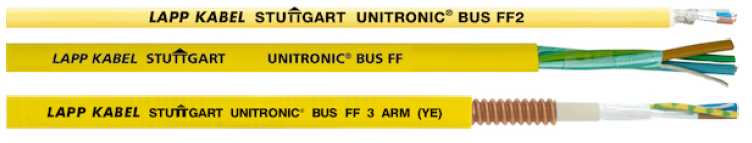

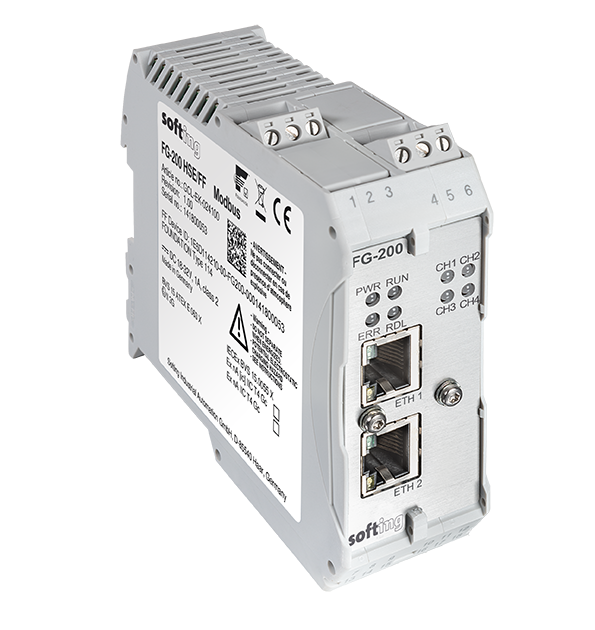

BUS FF

3-core, unarmoured with device ground,
3-core, armoured with device ground,
2-core, unarmoured with device ground,

Field Bus Test Equipment

모델명

측정항목

비고

TREX
사양서 (pdf)

HART,
Foundation Fieldbus
Communicator

Intrinsic Safety

MOBI-FF
MOBI-HART
사양서(PDF)

Video
HART   FF

MobiLink Modem for
HART
Foundation Fieldbus & PROFIBUS

HART,
Foundation Fieldbus (opt) 및 PROFIBUS(opt)용
Mobile Link Modem


mobiLink Power
사양서(PDF)

MobiLink Modem for
HART
Foundation Fieldbus & PROFIBUS
(with Power supply)

HART,
Foundation Fieldbus (opt) 및 PROFIBUS(opt)용
Mobile Link Modem
with Power Supply

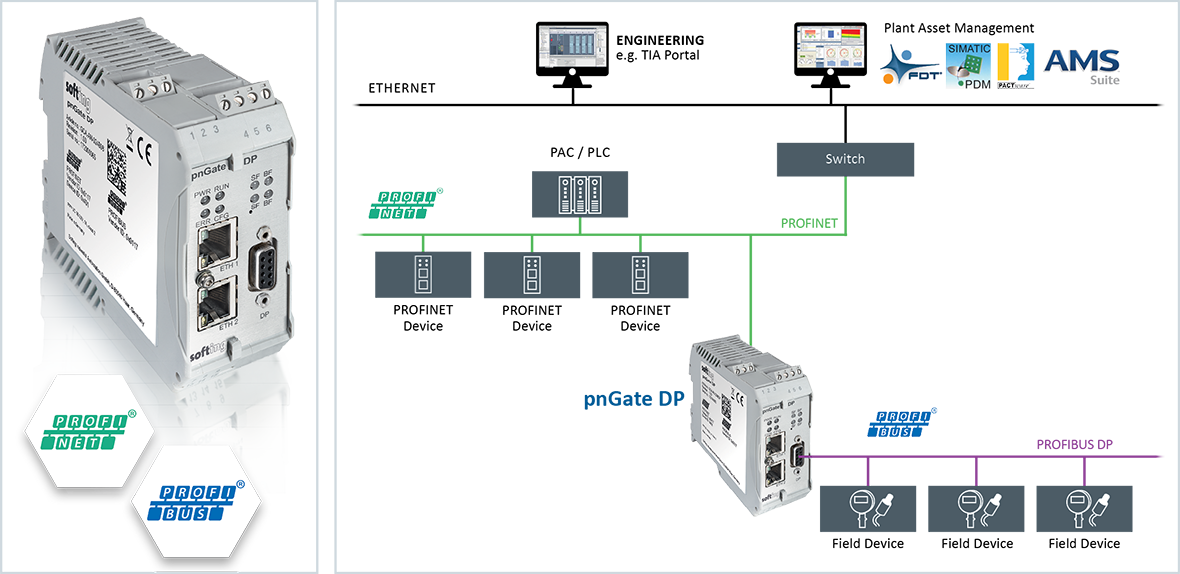

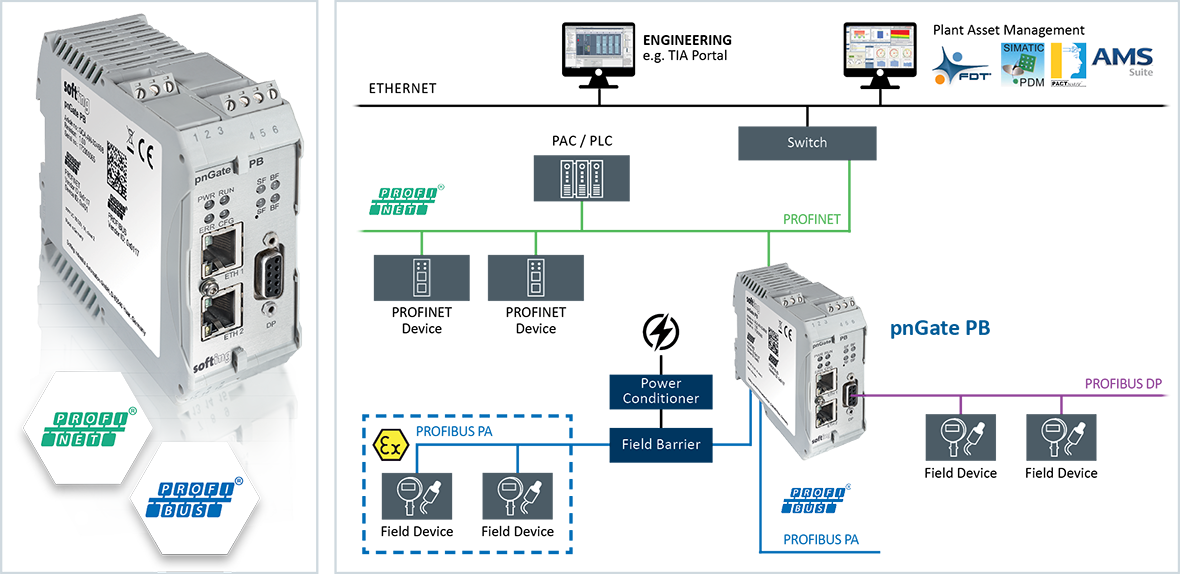

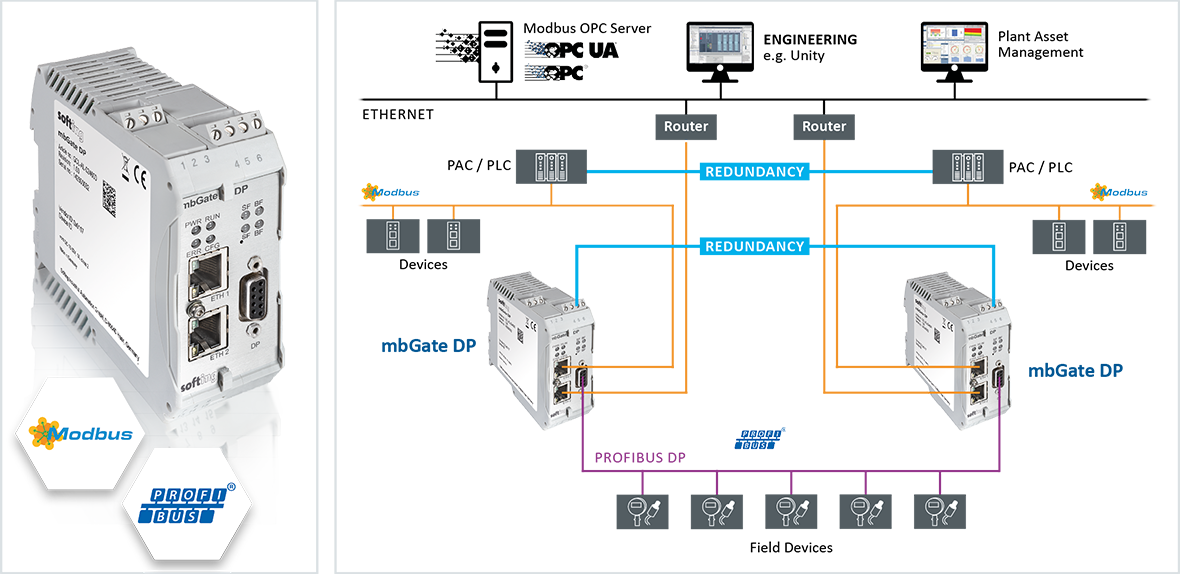

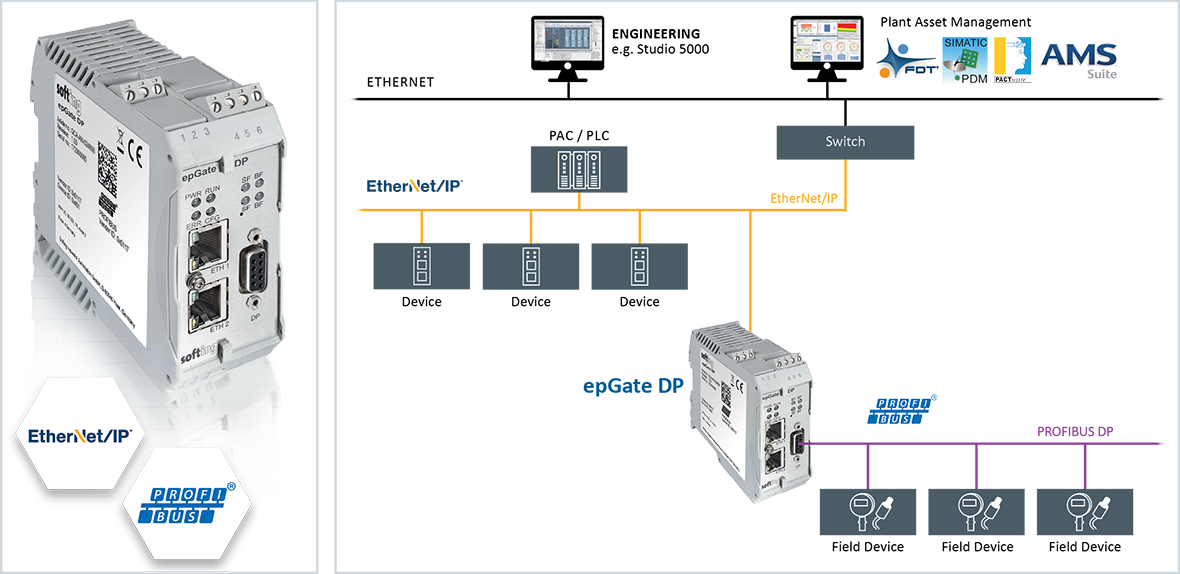

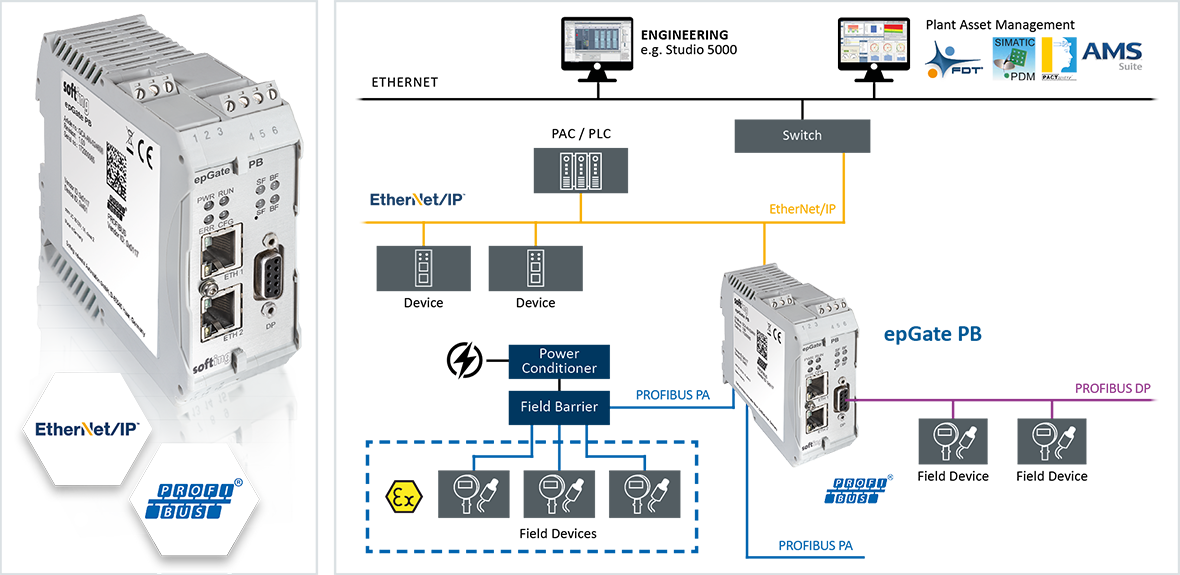

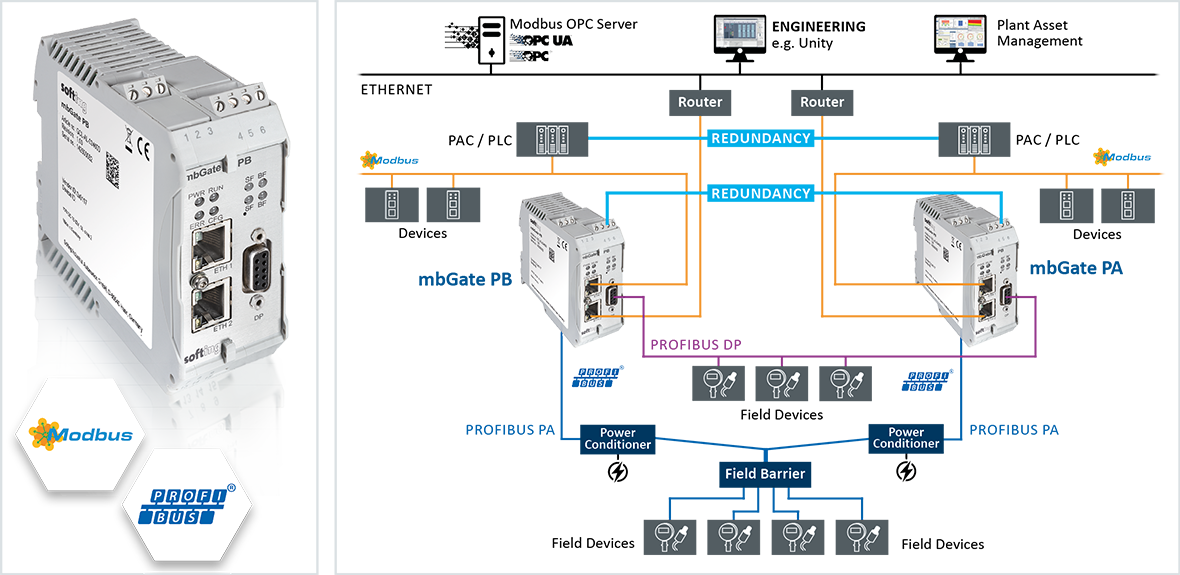

BC-700-PB

PROFIBUS Tester

PB-Diag-Suite

PROFIBUS Diagnostic Suite S/W

Profibus Diagnostic Suite S/W

Analyzer-IE

PROFIBUS Analyzer S/W

Analyzer PRO

PROFINET Analyzer S/W

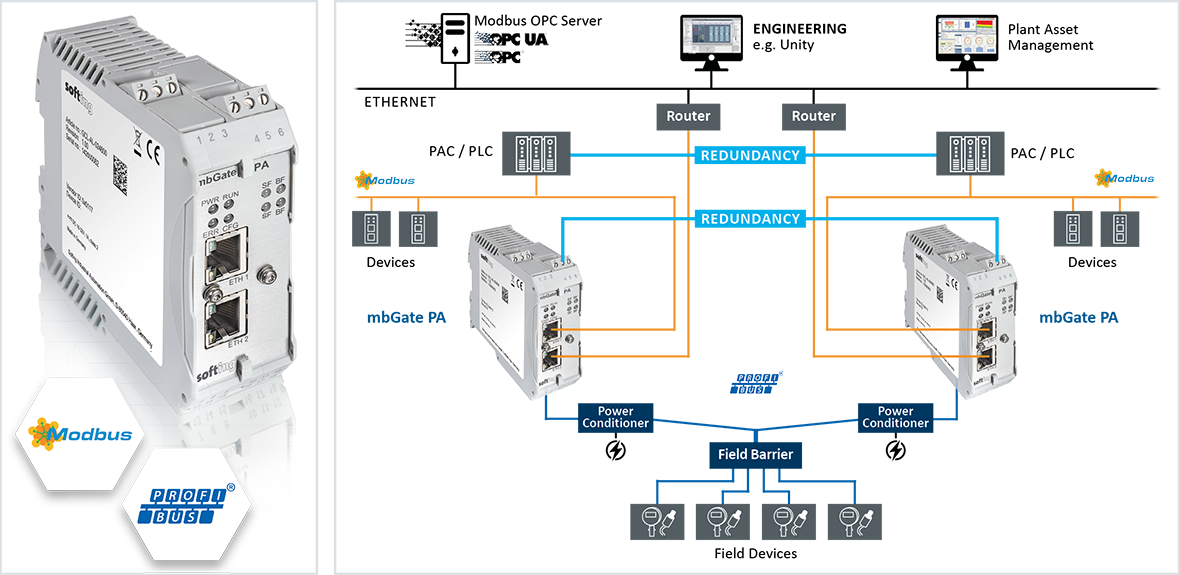

BC-230-PB

PROFIBUS PA Diagnostic Monitor

PROFIBUS PA

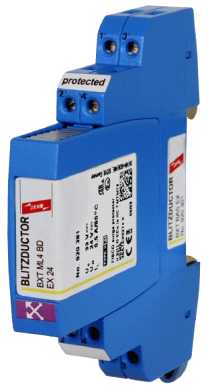

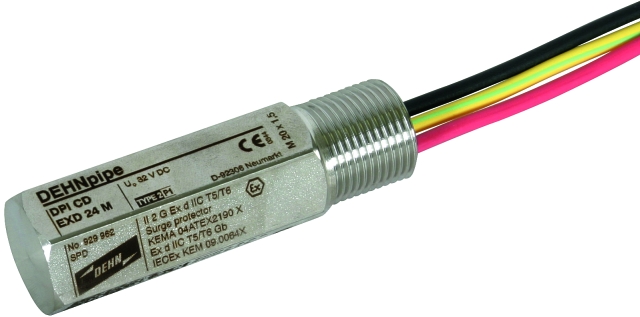

써지 보호기 (Surge Protector)

모델명

최대써지
전류(kA)

전압

밴드폭

설 치

적 용

10 kA

20 kA

32V

7.7MHz

Trunk

FISCO Certified

Exd 24

10 kA

32V

6.7MHz

Field Transmitter

FIELDBUS
PROFIBUS-PA
Exd, IS Certified

DC 입력전원 범위

19.2 ~ 30VDC

DC 출력 범위

12VDC, 115mA, 240mA

Isolation

250VDC Input-Output-Pwr

Ambient Temperature

-40 ~ 70℃

LED Indication

Power OK (Green on)
Host Comm. OK (Yellow on)
IS Comm. OK (Yellow on)
Fault (Red on)

Certification Compatiblity

Foundation FF816-FISCO
IEC60079-27 CDV FISCO

Mounting

DIN Rail

DC 입력전원 범위

20~35Vdc

DC 출력 범위

18.4Vdc±2%,
105Ω±2% dc impedance
80mA 최대전류

최소 부하 전류

10mA

Digital Signal Transmittion

31.25kbps / complies with Fieldbus Standards

Isolation

250Vdc  safe circuit-hazafdous circuit -power supply

필요 전원

135mA @24Vdc
105mA @35Vdc

기 타

2.3W @24Vdc, 80mA
2.6W max @35Vdc,80mA

Safty Description

22V, 102옴, 216mA, Um=250Vrms /dc

DC 입력전원 범위

18 ~ 36VDC, Redundant

DC 출력 범위

26VDC, 350mA

Isolation

1500VDC Input-Output

Ambient Temperature

-20 ~ 65℃

Alarm Function

1) 1또는2 DC입력값이 18VDC이하
2) DC출력값이 22VDC이하
3) Fieldbus가 단락(Short)되었을때

기 타

이중화 전원
DIN Rail 설치방식

DC 입력전원 범위

20~30Vdc (-20~60도씨),
20~35Vdc (-20~55도시)

DC 출력 범위

19Vdc±2%,
<2Ω dc impedance
350mA

최소 부하 전류

10mA

최대 케이블길이

1900m Type'A' cable : Fieldbus standard clause 22.7.2기준

필요 전원

420mA @24Vdc
370mA @30Vdc
520mA @20Vdc

기 타

3.4W @24Vdc, 350mA
4.5W max @30Vdc, 350mA

Wire Dia 범위

12~24AWG

외함 재료

LEXAN Carbonate

주변 온도

-45 ~ 70도씨

Power consumption

No Spurguard : tripped 1.7mA
per Spurguard : tripped 60mA
Max current to deliver Spur :58.0±0.1mA
Volt drop (trunk-spur) : typical 0.4V
(17mA device current draw)
Maximum 1.2V
Basic Megablock : 0.4mA

기 타

CSA approval EExia, C1 D1 Gr A,B,C,D

FISCO Certified Model  F241, 245, 251

Model

BA484DF

BA488CF

Area Classification

Intrinsic Safe

Intrinsic Safe

Protocol

FOUNDATION Fieldbus^TM
Profibus PA

FOUNDATION Fieldbus^TM
Profibus PA

Mounting

Field

Panel,  144 x 72mm

Protection

IP66  (GRP)

Front IP66,  Rear IP20

Op. push button

4

6

Remote Push button

6

6

Alarm Output

6

6

Certification

ATEX

EEx ia IIC T4

EEx ia IIC T4

USA FM

3610 Entity CL I, II, III Div. 1
3611 Nonincendive CLI,II,III Div. 2

3610 Entity CL I, II, III Div. 1
3611 Nonincendive CLI,II,III Div. 2

International

IECEx Ex ia IIC T4

IECEx Ex ia IIC T4

Optional dust protection

ATEX & IECEx

ATEX & IECEx

Model

BA484DF

BA488CF

Area Classification

Intrinsic Safe

Intrinsic Safe

Protocol

FOUNDATION Fieldbus^TM &
Profibus PA

FOUNDATION Fieldbus^TM &
Profibus PA

Mounting

Field

Panel,  144 x 72mm

Protection

IP66  (GRP)

Front IP66,  Rear IP20

Op. Push Button

4

6

Remote PB

6

6

Alarm Output

6

6

Certification

ATEX

ATEX Group II, 1G
EEx ia IIC T4

ATEX Group II, 1G
EEx ia IIC T4

USA FM

3610 Entity CL I, II, III Div. 1
3611 Nonincendive CLI,II,III Div. 2

3610 Entity CL I, II, III Div. 1
3611 Nonincendive CLI,II,III Div. 2

International

IECEx Ex ia IIC T4

IECEx Ex ia IIC T4

Optional dust protection

ATEX & IECEx

ATEX & IECEx

Model

BA414DF

BA414NDF

BA614DF

Area

Intrinsic Safe

Non Incendive

General

Protocol

FOUNDATION Fieldbus^TM

FOUNDATION Fieldbus^TM

FOUNDATION Fieldbus^TM

Mounting

Field

Field

Field

Protection

IP66  (GRP)

IP66  (GRP)

IP66  (GRP)

Certification

Europe

ATEX Group II, 1G
EEx ia IIC T4

ATEX Group II, 3G
EEx nL IIC T4

N/A

USA FM, CANADA cFM

Entity CL I, II, III Div. 1
Non Incendive  CLI,II,III Div. 2

Entity CL I, II, III Div. 1
Non Incendive  CLI,II,III Div. 2

N/A

International

IECEx Ex ia IIC T4

IECEx Ex nL IIC T4

N/A

Optional dust protection

ATEX & IECEx

ATEX & IECEx

N/A

Model

BA414DF

BA414NDF

BA614DF

Area Classification

Intrinsic Safe

Non Incendive

General

Protocol

FOUNDATION Fieldbus^TM

FOUNDATION Fieldbus^TM

FOUNDATION Fieldbus^TM

Mounting

Field

Field

Field

Protection

IP66  (GRP)

IP66  (GRP)

IP66  (GRP)

Certification

Europe

ATEX Group II, 1G
EEx ia IIC T4

ATEX Group II, 3G
EEx nL IIC T4

N/A

USA FM, CANADA cFM

Entity CL I, II, III Div. 1
Non Incendive CLI,II,III Div 2

Entity CL I, II, III Div. 1
Non Incendive  CLI,II,III Div. 2

N/A

International

IECEx Ex ia IIC T4

IECEx Ex nL IIC T4

N/A

Optional dust protection

ATEX & IECEx

ATEX & IECEx

N/A

입력

T/C (types J, K, T, R, S, E, C, B, N), -50 mV~1V
Pt RTD100, 200,300,400,500, 1000 , 0-4k Ohm
Ni120, Cu10
0-20mA, 4-20mA, 10-50mA
0-5V, 1-5V, 0-10V

출력

RS485, MODBUS RTU

Ambinet Temp. Comp.

Coldjunction compensation

Isolation

1000V,  Input/Case

정확도

0.45 도씨 (CJC), 0.18도씨 RTD

주변온도

-40 ~ 85 도씨

 Power Supply

24Vdc

입력

HART

출력

AO : 4 - 20mA, 0-20mA 또는 MODBUS
2접점 : SPDT 릴레이, 1 form C, 5A @250V non-inductive
1접점 : DPDT 2 form C, 5A @250V

정확도

Field HART 계기 오차에 따름
AO 출력 : ±0.015%Span

Isolation

500Vrms Channel-to-Channel
1000Vrms  Case-Input-Output

표시 화면

2Line LCD, 5 Alphanumeric display
LED Lamp

주변온도

-25~70도씨

크기

65 x 100 x 138mm

무게

567 그램

입력

T/C (types J, K, T, R, S, E, C, B, N), -50 mV~1V
Pt RTD100, 200,300,400,500, 1000 , 0-4k Ohm
Ni120, Cu10

출력

PROFIBUS PA

Ambient Temp. Comp.

Coldjunction compensation ±0.45 degC

Noise Rejection

Common mode, 100dB@50/60Hz;
Normal mode: 70dB typical at 200mVp-p@50/60Hz

RFI/EMI Immunity

20V/m@80-1000MHz,
1kHz AM when tested according to IEC 1000-4-3-1995

정확도

0.45 도씨 (CJC), 0.18도씨 RTD

주변온도

-40 ~ 85 도씨

 Power Supply

9-30Vdc ( IS : 9-28Vdc)

CPU

ARM Cortex A8/NXP, 800MHz ,  Window Embedded Compact2013

RAM

2 GB NAND and 32GB extended flash, 521MB DDR

Display

5.7" Color VGA (640x480 pixels), resistive touch screen

Key Pad

x button,  4 arrow buttons to navigate menus, checkmark

Battery

Li-Ion,  Rechargeable Battery,
8+ Hrs typical use
3-4 Hrs  charge time

통신

Bluetooth 2.1, WiFi 802.11 b/g, Active NFC, micro USB 2.0

주변 온도

-20 도씨 ~ +50 도씨

방폭 써티

IECEx, ATEX, FISCO, CSA, IP54

전원

필드버스케이블용 전원이용

소모전류

약 15mA

주변 온도

0 ~ 50 도씨

신호검지 레벨

150 mV ± 20 mV

DC전원 검지 레벨

9.0 V ± 0.2 V

전원

3 x  AA  1.5V Battery

주변 온도

0 ~ 50 도씨

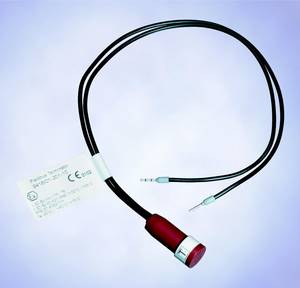

설치 장소

Zone 0, IIC, T4

설치 환경

-20 ~ +60도씨

전기적 특성

Fully Complies with the requirements of section 22.7.5 of appropriate fieldbus standards
Rmin=99옴, Cmax=1.1㎌

Safety
Description

T4 @ 60도씨 (Max input power of 1.2W)
(FM: C_i=0㎌, L_i=0mH, Contains no inductive circuits)

누설 전류

1㎂@ working Volt(L-L)
1㎂@120V common mode (L-E)

Working  전압

±32V dc max
±120V peak (or dc) max common mode

Impulse Rating

10 kA peak (8/20 micro sec)

제한 전압

<49V (10A, 10/1000 ㎲) : L-L with 250mm cable
<635V (3kA, 8/20㎲ wave form)
<635V (6kV, 1.2/50㎲ wave form)

EMC Compliance

EN50 082, part 2 for industrial

외함

ANSI SS316 male thread

Threads

TP48-N : 1/2" NPT
TP48-I  : 20 mm ISO (M20x1.5)
TP48-P : Pg 13.5

전기적 안전

EEx ia IIC T4, Ceq=0, Leq=0
Open Circuit Volt<60V 및
입력파워 < 1.3W

EEx d IIC T4 (EX-Proof)

주변 온도

-20 ~ 60도씨

상대 습도

5 ~ 95% RH

설치 장소

Zone 0, IIC, T4

설치 환경

-20 ~ +60도씨

전기적 특성

Fully Complies with the requirements of section 22.7.5 of appropriate fieldbus standards
Rmin=99옴, Cmax=1.1㎌

Safty
Description

T4 @ 60도씨 (Max input power of 1.2W)
(FM: C_i=0㎌, L_i=0mH, Contains no inductive circuits)

Approvals

CSA : C22.2 #157 LR36637-118 C1D2 Gr.A-G
BASEEFA : BS5501:Pts1 &7:1997  Ex94C2127 EEx ia IIC T4
FM : EN50014 & 50020  3610 entity   J.1.4X0A.AX C1D1 Gr. A-G
