Mobile PC

Mobile Camera System

본안 카메라, 태블릿 PC, 스마트폰
( IS Camera, Tablet PC, Smart phone )

그림에 마우스를 올리시면 해당 제품에 대한 상세한 정보를 보실 수 있습니다.

Intrinsic Safety Industrial PC
모델	모델명	특 장 점	비고
	Agile X 사양서(PDF)	IS Camera, HART communicator, Industrial PC	Intrinsic Safety
	TC 75-NI 사양서(PDF)	4.7" Industrial Mobile Computer IS Camera	Intrinsic Safety
	Lumen X4 사양서(PDF)	7", 4.3" Industrial Mobile Computer IS Camera	Intrinsic Safety

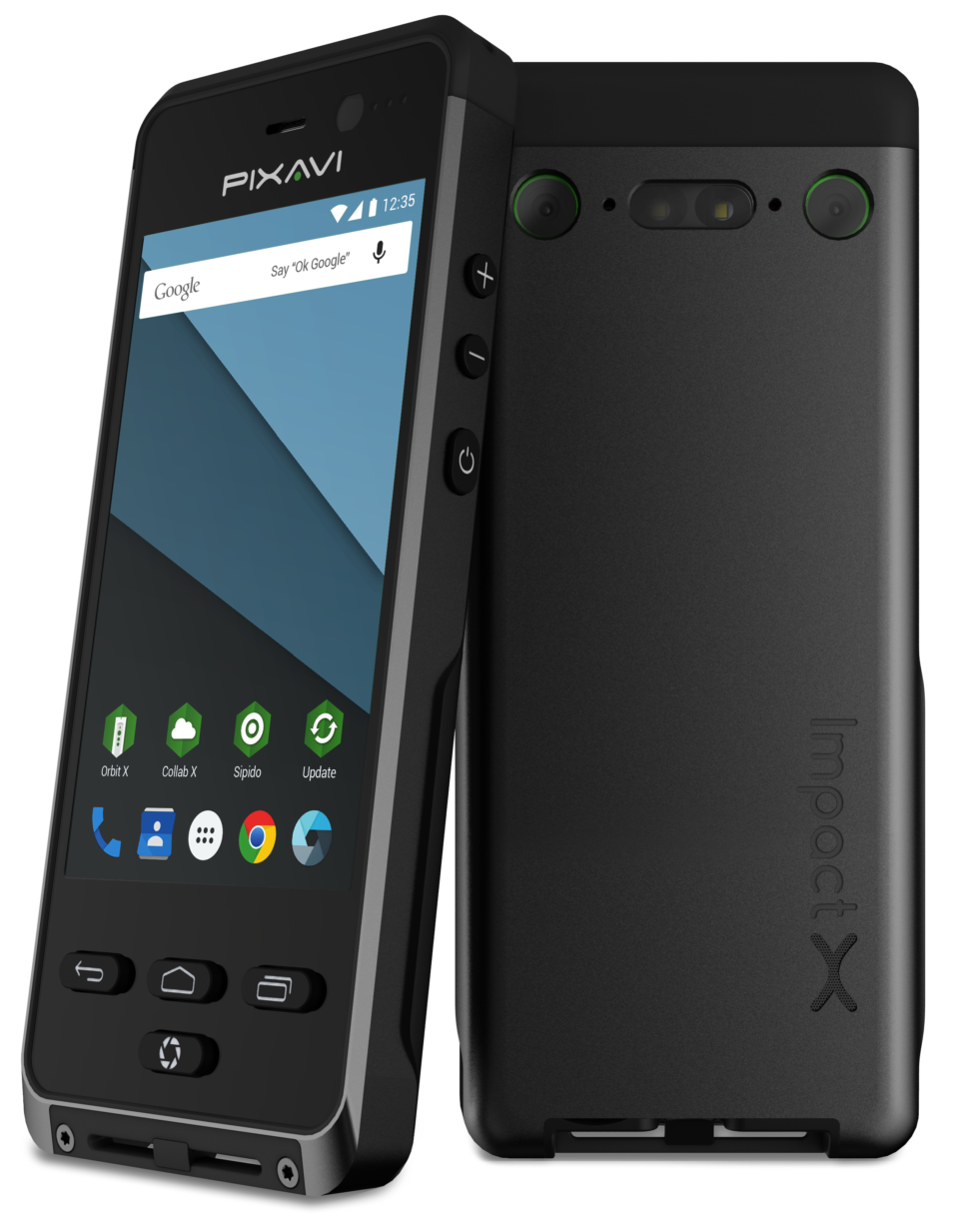

Intro Video	PIXAVI 사양서(PDF)	IS Smart Phone, IS Camera	Intrinsic Safety

Mobile Camera System
모델	모델명	측정항목	비고
	Gravity X 사양서(PDF)	Intrinsically Safe Camera	Intrinsic Safety
	Orbit X 사양서(PDF)	Intrinsically Safe Wi-Fi Camera	Intrinsic Safety

Copyright(c) TM Solutions inc. All rights reserved

티엠솔루션(주) / 서울시 금천구 가산디지털2로 123, 717호(월드메르디앙벤처센타 2 빌딩) / Tel:(02)784-2526 / Fax:(02)784-2547

CPU	Intel N3710 1.6GHz (turbo 2.56GHz)
RAM	8GB SODIM DDR3L-1600, 128GB SATA µSSD
Display	10.1" Color LCD(1920 x 1200 fixels), Touch screen
Operation System	Window 10 IoT Enterprise CBB Window Embedded 8.1 Industry Pro
Camera	Front : 2MP camera Rear : 5MP autobocus camear with flash
Data Capture	1D, 2D (QR etc) Barcode RFID (ISO/IEC14443A/B etc) NFC(ISO 18092)
Battery	Internal Battery : 7.4V typ. 4200mAh External Battery : 7.4V typ. 4200mAh External battery can be hot swapped in hazardous area
Communication	Bluetooth, Wi-Fi, WWAN
Operation Temp.	-20 도씨 ~ +50 도씨
방폭 써티	IECEx, ATEX, UL

CPU	APM Cortex-A53 Quad Core 1.3GHz
RAM	16GB eMMC, up to 32GB µSD card supported
Display	4.3" Color LCD(480 x 800 fixels), Touch screen IP54 (Non-Ex IP 65)
Operation System	Android 5.1 (Lollipop)
Camera	Front : 2MP camera Rear : 8MP autobocus camear with LED flash
Barcode scanner (option)	1D, 2D (QR etc) Barcode
Battery	Lithium polymer Battery : 3.7V, 3900mAh Battery life up to 20Hrs
Communication	Bluetooth, Wi-Fi, WWAN, GPS
Operation Temp.	-20 도씨 ~ +50 도씨
방폭 써티	IECEx, ATEX, CSA

RAM	16 to 32GB storage
Display	4.3" Retina (480 x 800 fixels), Touch screen Gorilla Glass (IP68),
Operating System	Android 5.1.1 (Lollipop)
Video & Image	Full HD video (1080p, 30fps), H.264/AVC codec 8MP still image, 4X zoom, 16-32GB storage Flipscape one hand vidoegraphy
Battery	3000mAh, 400Hr standby, 8Hr video palyback, 4-6Hr full operating time of video recording
Communication	Bluetooth, Wi-Fi(802.11 a/b/g/n (2.4 & 5GHz), Wi-Fi media sharing : Dropbox, Picasa, Flickr, Box, Onedrive
Operation Temp.	-20 도씨 ~ +45 도씨
방폭 써티	IECEx, ATEX, CSA

CPU	Dual core 1.2GHz
RAM	16GB to 32GB internal video, image storage
Display	4.3" Retina (480 x 800 fixels), Touch screen Gorilla Glass (IP68),
Operating System	Android 5.1.1 (Lollipop)
Video & Image	Full HD video (1080p, 30fps)
Battery	1000mAh, 200Hr standby, Video streaming 1Hr, recording 1.5 Hr
Communication	Bluetooth, Wi-Fi
Operation Temp.	-20 도씨 ~ +45 도씨
방폭 써티	IECEx, ATEX, CSA

신호측정 범위	0 ~ 60dBmV
노이즈 측정범위	-20 ~ +55dBmV
디스플레이	4 Line x 20 Characters (w / Backlit)
전원	충전 배터리 (약 2.5시간사용) 전원 ; 90 ~ 230VAC
키 패널	+맴브레인 타입 키, 스위치
운용주변온도	0°C to +50°C
중량	3.3 Kg
크기	22 x 11 x 29Cm
옵션	1. PC Monitor S/W (CBM-1S01)

악세사리	1. 차저, 전원케이블 2. Signal Generator 3. Adapter, connetors 4. Carrying Case 5. Instruction Manual 6. Probe Cable (75옴 1.5미터)

CPU	Dual core 1.7 GHz Processor
RAM	8GB Flash pSLC, expandable up to 8GB µSD card supported
Display	4.7" Color (1,280 x 720 pixels), Touch screen IP67
Operation System	Android 5.1 (Lollipop)
Camera	Front : 1.3MP fixed camera Rear : 8MP autofocus camear
Barcode scanner (option)	1D, 2D Barcode
Battery	Lithium polymer Battery : 3.7V, 4620mAh
Communication	Bluetooth, Wi-Fi, WWAN, GPS
Operation Temp.	-20 도씨 ~ +50 도씨
방폭 써티	KCS, IECEx, ATEX,
